Java设计模式

1 单例模式（Singleton）

1.1. 饿汉式

类加载到内存后，就实例化一个单例，JVM保证线程安全简单实用，推荐使用！
唯一缺点：不管用到与否，类装载时就完成实例化
Class.forName(“”) （话说你不用的，你装载它干啥）


private static final Mgr01 INSTANCE = new Mgr01();
private Mgr01() {};
public static Mgr01 getInstance() {
    return INSTANCE;
}

1.2. 懒汉式

虽然达到了按需初始化的目的，但却带来线程不安全的问题


private static Mgr03 INSTANCE;
private Mgr03() {}
public static Mgr03 getInstance() {
    if (INSTANCE == null)
        INSTANCE = new Mgr03();
    return INSTANCE;
}

synchronized
修饰方法，但是效率会下降


private static Mgr04 INSTANCE;
private Mgr04() {}
public static synchronized Mgr04 getInstance() {
    if (INSTANCE == null)
        INSTANCE = new Mgr04();
    return INSTANCE;
}

双重检查


private static volatile Mgr06 INSTANCE;
private Mgr06() {}
public static Mgr06 getInstance() {
    if (INSTANCE == null) {
        synchronized (Mgr06.class) {
            if(INSTANCE == null)
                INSTANCE = new Mgr06();
        }
    }
    return INSTANCE;
}

1.3. 其他形式

静态内部类


private Mgr07() {}
private static class Mgr07Holder {
    private final static Mgr07 INSTANCE = new Mgr07();
}
public static Mgr07 getInstance() {
    return Mgr07Holder.INSTANCE;
}

直接使用枚举
不仅可以解决线程同步，还可以防止反序列化。


public enum Mgr08 {
    INSTANCE;
}

2 策略模式（Strategy）

适用于通用的比较方法


package java.lang;
public interface Comparable<T> {
	public int compareTo(T o);
}

比较器：和通用 compareTo 不同的比较策略


package java.util;
@FunctionalInterface
public interface Comparator<T> {
	int compare(T o1, T o2);
    //others...
}


public class Achievement implements Comparable<Achievement> {
    private int chinese;
    private int math;
    private int english;
    private int totalScore;
     @Override
    public int compareTo(Achievement achievement) {
        return this.totalScore - achievement.totalScore;
    }
}

数学成绩比较器


public class MathComparator implements Comparator<Achievement> {
    @Override
    public int compare(Achievement a1, Achievement a2) {
        return a1.getMath() - a2.getMath();
    }
}

3 工厂模式（Factory）

简单工厂模式：简单工厂类生成不同的对象
SimpleXXXactory.createXXX()


public class SimpleTestPaperFactory {
    public static ChineseTestPaper createChinesePaper() {        return new ChineseTestPaper();    }
    public static MathTestPaper createMathPaper() {        return new MathTestPaper();    }
    public static EnglishTestPaper createEnglishPaper() {        return new EnglishTestPaper();    }
}

工厂模式：具体类的具有独有的生成工厂
优点：方便产品单一的扩展，只需要增加对应的产品工厂
XXXFactory.create()


public class MathTestPaper implements Testable {}


public interface Testable {}


public class MathTestPaperFactory {
    public static Testable create() {        return new MathTestPaper();    }
}

抽象工厂：可生成一系列“产品”，每系列”产品“可横向分为产品族
优点：可方便扩展产品族缺点：单一产品的扩展，要改动香港系列的所有产品产品


public abstract class AbstractTestPaperFactory {
    abstract ChineseTestPaper createChineseTestPaper();
    abstract MathTestPaper createMathTestPaper();
}


public abstract class ChineseTestPaper  {
    abstract void articleTitle();
}


public abstract class MathTestPaper {
    abstract void additionalQuestions();
}


public class Grade1TestPaperFactory extends AbstractTestPaperFactory {
    @Override
    public ChineseTestPaper createChineseTestPaper() {
        return new Grade1ChineseTestPaper();
    }

    @Override
    public MathTestPaper createMathTestPaper() {
        return new Grade1MathTestPaper();
    }
}


public class Grade2TestPaperFactory extends AbstractTestPaperFactory {
    @Override
    public ChineseTestPaper createChineseTestPaper() {
        return new Grade2ChineseTestPaper();
    }
    @Override
    public MathTestPaper createMathTestPaper() {
        return new Grade2MathTestPaper();
    }
}


public class Grade1ChineseTestPaper extends ChineseTestPaper {
    @Override
    void articleTitle() {
        System.out.println("Grade1ChineseTestPaperFactory ArticleTitle is eee");
    }
}


public class Grade1MathTestPaper extends MathTestPaper{
    @Override
    void additionalQuestions() {
        System.out.println("Grade1MathTestPaper additionalQuestions is 1+1=?");
    }
}


public class Grade2ChineseTestPaper extends ChineseTestPaper {
    @Override
    void articleTitle() {
        System.out.println("Grade2ChineseTestPaperFactory ArticleTitle is sanzijing");
    }
}


public class Grade2MathTestPaper extends MathTestPaper{
    @Override
    void additionalQuestions() {
        System.out.println("Grade2MathTestPaper additionalQuestions is 2*X+5=0 X=?");
    }
}

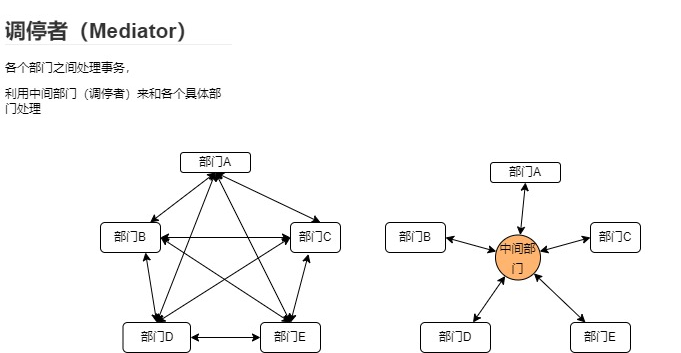

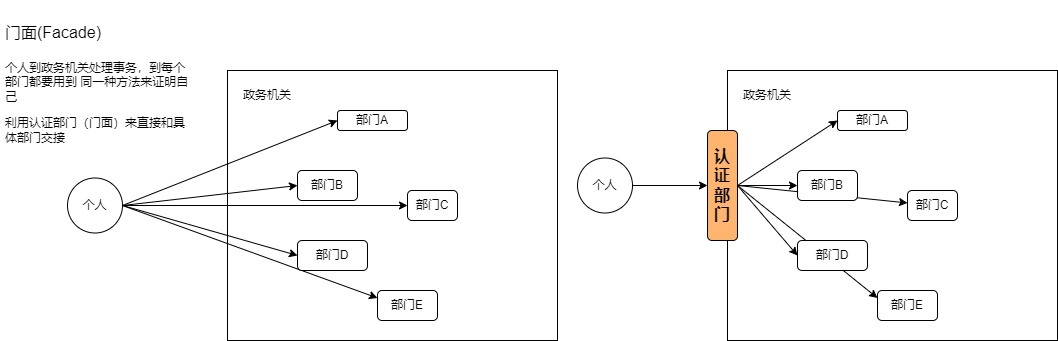

4 门面(Facade)调停者（Mediator）

调停者

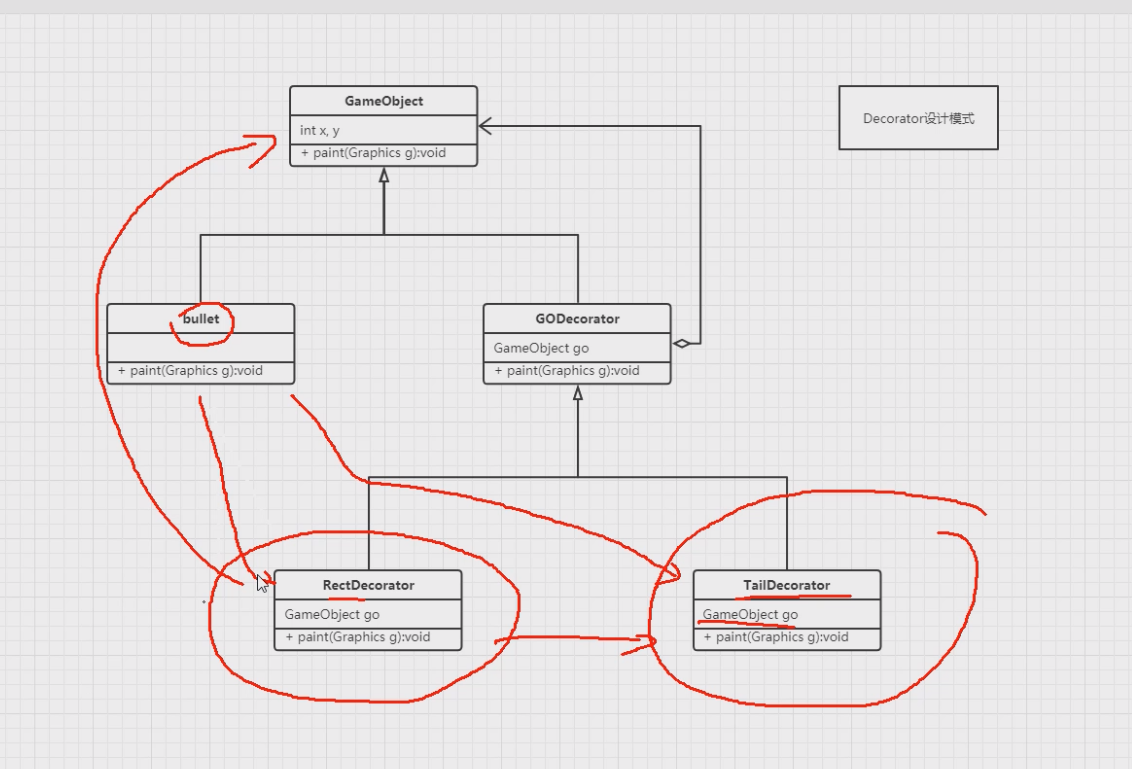

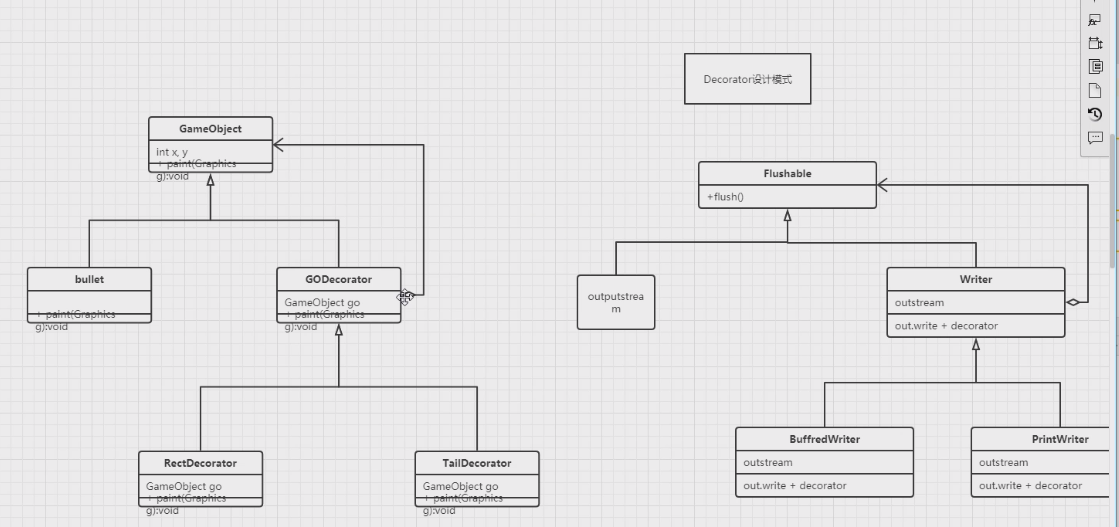

5 装饰器(Decorator)

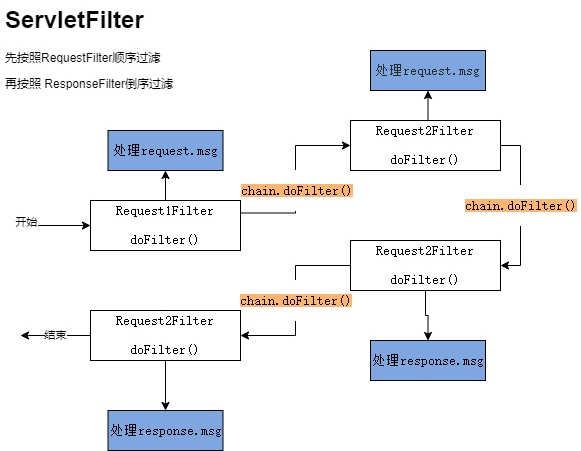

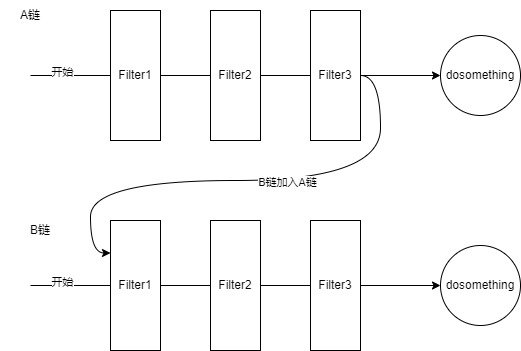

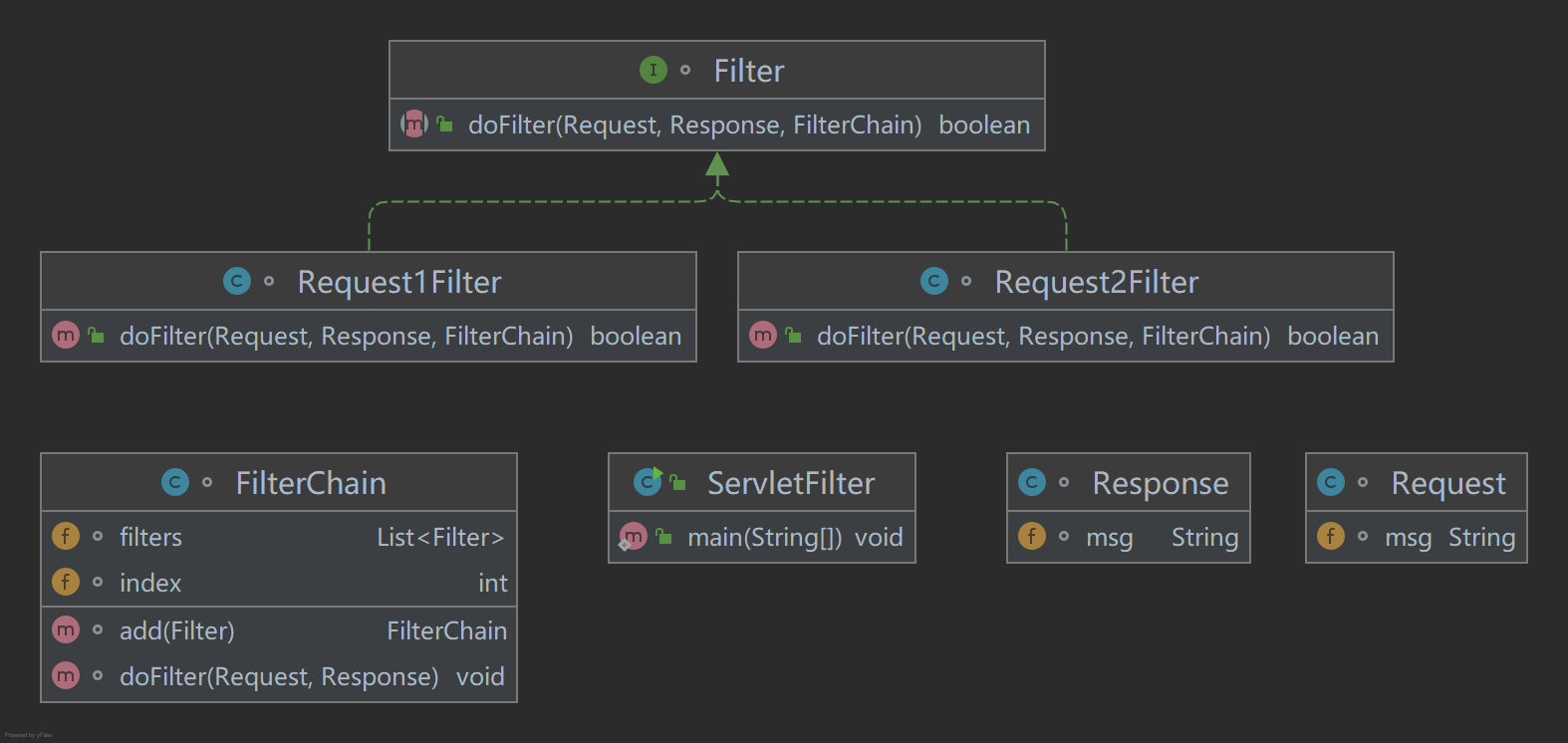

6 责任链(ChainOfResponsibility)

责任链(ChainOfResponsibility)：


interface Filter {
    boolean doFilter(Request request, Response response, FilterChain chain);
}


class Request {
    String msg;
}
class Response {
    String msg;
}


class Request1Filter implements Filter {
    @Override
    public boolean doFilter(Request request, Response response, FilterChain chain) {
        request.msg = request.msg.replaceAll("1", "ONE");
        chain.doFilter(request, response);
        response.msg = response.msg.replaceAll("9", "NINE");
        return false;
    }
}


class Request2Filter implements Filter {
    @Override
    public boolean doFilter(Request request, Response response, FilterChain chain) {
        request.msg = request.msg.replaceAll("2", "TWO");
        chain.doFilter(request, response);
        response.msg = response.msg.replaceAll("8", "EIGHT");
        return false;
    }
}


class FilterChain {
    List<Filter> filters = new ArrayList<>();
    int index = 0;
    FilterChain add(Filter f) {
        filters.add(f);
        return this;
    }
    void doFilter(Request request, Response response) {
        if (index == filters.size()) return;
        Filter filter = filters.get(index);
        index++;
        filter.doFilter(request, response, this);
    }
}

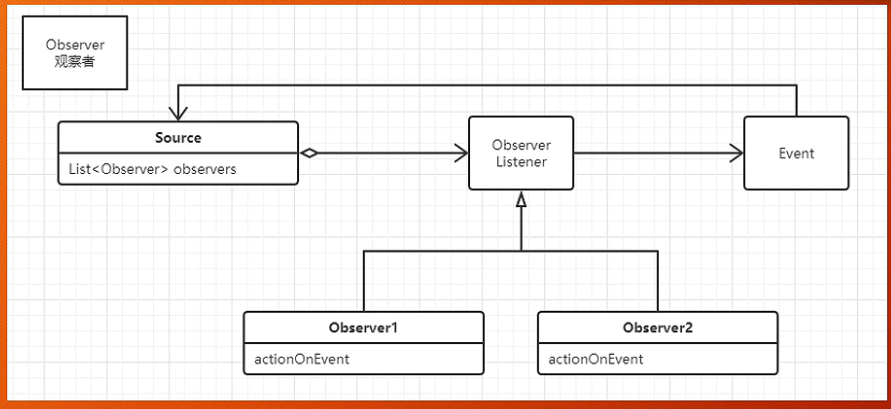

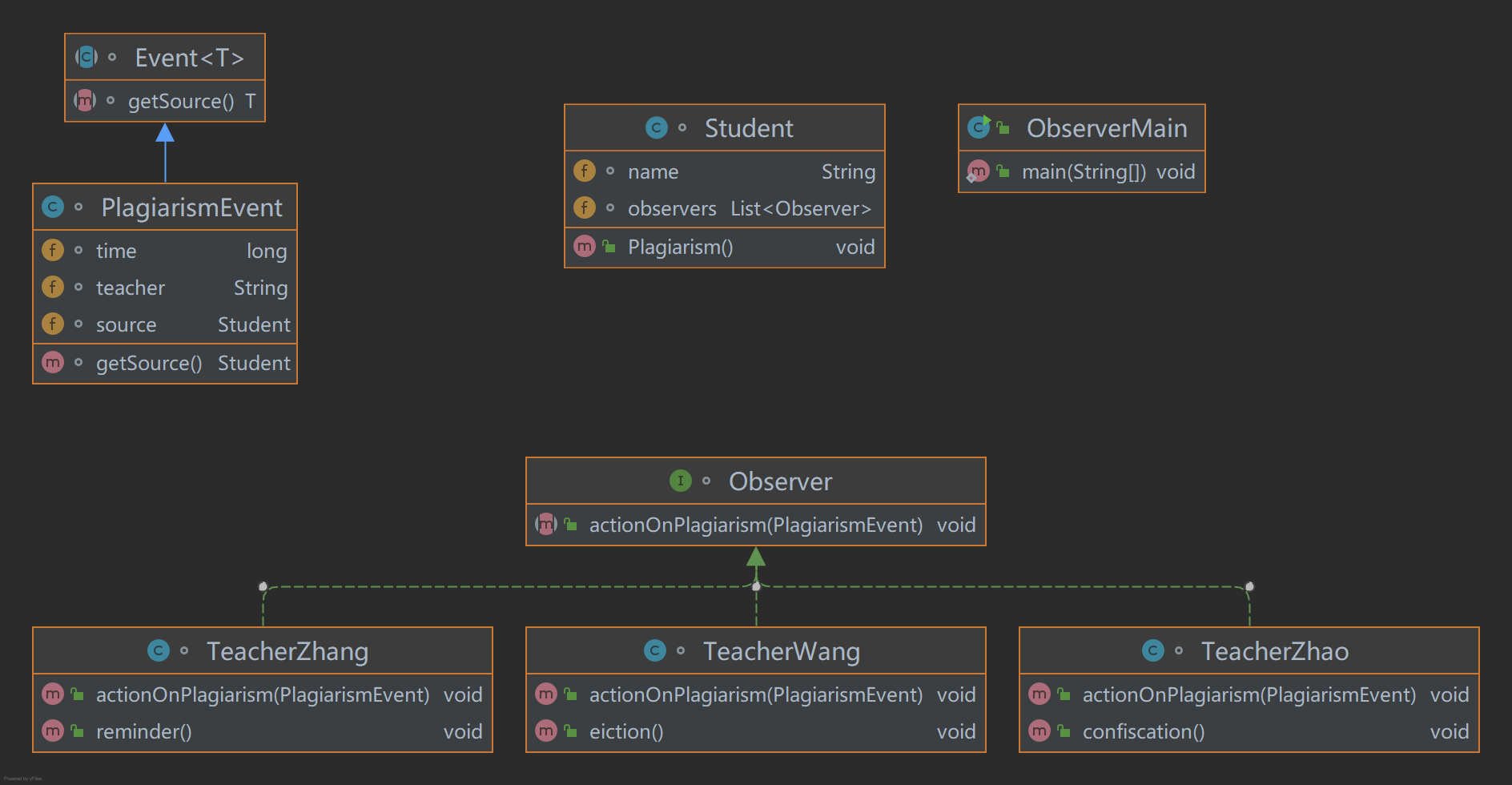

7 观察者（Observer）

观察者（Observer）：源对象发出对应的事件，观察者触发对应的操作


abstract class Event<T> {
    abstract T getSource();
}


interface Observer {
    void actionOnPlagiarism(PlagiarismEvent event);
}


class PlagiarismEvent extends Event<Student> {
    long time;
    String teacher;
    Student source;

    public PlagiarismEvent(long time, String teacher, Student source) {
        this.time = time;
        this.teacher = teacher;
        this.source = source;
    }

    @Override
    Student getSource() {
        return source;
    }
}

当学生作弊时：observers 对应的所有老师会执行 actionOnPlagiarism
每个老师的 actionOnPlagiarism 内进行自身的规则匹配或执行不同的操作


class Student {
    String name;
    public Student(String name) {        this.name = name;    }
    List<Observer> observers = new ArrayList<>();
    {
        observers.add(new TeacherZhang());
        observers.add(new TeacherZhao());
        observers.add(new TeacherWang());
    }
    public void Plagiarism() {
        for (Observer observer : observers) {
            observer.actionOnPlagiarism(new PlagiarismEvent(System.currentTimeMillis(), "ALL", this));
        }
    }
}


class TeacherZhang implements Observer {
    public void reminder() {
        System.out.println("张：禁止小动作");
    }
    @Override
    public void actionOnPlagiarism(PlagiarismEvent event) {
        System.out.println("张发现" + event.getSource().name + "作弊");
        reminder();
    }
}

class TeacherZhao implements Observer {
    public void confiscation() {
        System.out.println("赵：没收作弊工具");
    }

    @Override
    public void actionOnPlagiarism(PlagiarismEvent event) {
        System.out.println("赵发现" + event.getSource().name + "作弊");

        confiscation();
    }
}

class TeacherWang implements Observer {
    public void eiction() {
        System.out.println("王：逐出考场");
    }

    @Override
    public void actionOnPlagiarism(PlagiarismEvent event) {
        System.out.println("王发现" + event.getSource().name + "作弊");
        if (event.teacher.equals("ALL"))
            return;
        eiction();
    }
}

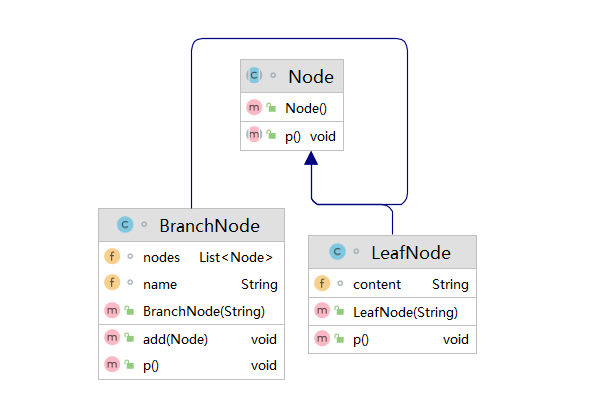

8 组合模式（Composite）

主要用来处理树状结构


abstract class Node {
    abstract public void p();
}


class LeafNode extends Node {
    String content;
    public LeafNode(String content) {this.content = content;}
    @Override
    public void p() {
        System.out.println(content);
    }
}


class BranchNode extends Node {
    List<Node> nodes = new ArrayList<>();
    String name;
    public BranchNode(String name) {this.name = name;}
    @Override
    public void p() {
        System.out.println(name);
    }
    public void add(Node n) {
        nodes.add(n);
    }
}

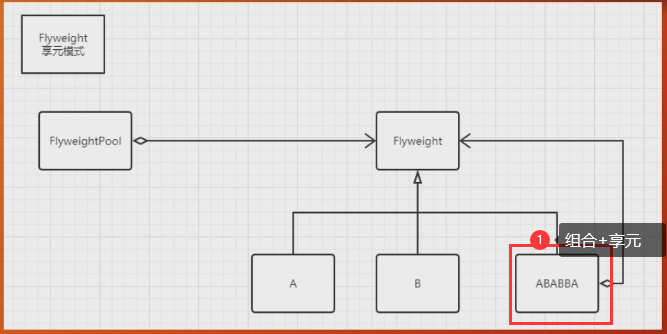

9 享元模式（Flyweight）

java中String就是利用的享元模式，字符串会放入常量池


class Bullet{
    public UUID id = UUID.randomUUID();
    boolean living = true;
}


public class BulletPool {
    List<Bullet> bullets = new ArrayList<>();
    {
        for(int i=0; i<5; i++) bullets.add(new Bullet());
    }
    /**
     * 当b不是活着的时候，将其return出去
     */
    public Bullet getBullet() {
        for(int i=0; i<bullets.size(); i++) {
            Bullet b = bullets.get(i);
            if(!b.living) return b;
        }
        return new Bullet();
    }
}


String s1 = "abc";
String s2 = "abc";
String s3 = new String("abc");
String s4 = new String("abc");
System.out.println(s1 == s2); //true
System.out.println(s1 == s3); //false
System.out.println(s3.intern() == s1);//true

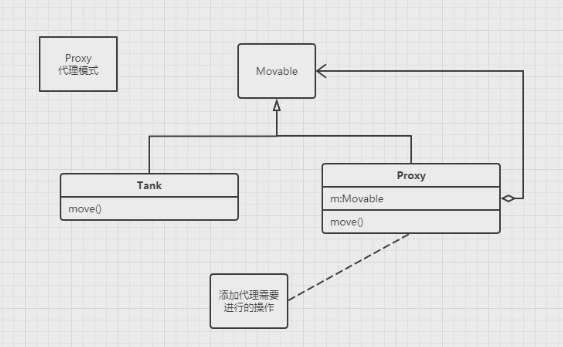

10 静态代理与动态代理（Proxy）
